Pallet & roller conveyors
Roller conveyors for moving pallets, collective packs and cartons — with guides and stops that hold the load in a repeatable position. They run powered or by gravity.
Machine video
How it works and what it delivers
Pallet transport is a different class of load than product transport. A full pallet is several hundred kilograms that must be moved, stopped at a defined point and handed over — without shifting the load and without shock loading the structure.
We build our roller conveyors with guides and stops that set the pallet in a repeatable position ahead of the next operation — wrapping, labelling or forklift pick-up. We match the drive to the need: on decline and buffer sections the rollers can run by gravity — no drive or power supply, while wherever the route calls for forced, controlled pallet transport we use a driven version.
The same arrangement works for collective packs and cartons — what changes is the roller pitch and the way the load is guided.
Applications
- Pallet transport between palletising and the wrapper
- Pallet and collective pack buffer at the end of the line
- Transferring cartons between workstations
- Forklift pallet pick-up zones
Benefits
- Construction rated for the load of a full pallet
- Load positioning by stops ahead of the next operation
- Powered or gravity operation, depending on the section
- Buffer sections that cut downtime waiting on forklift handling

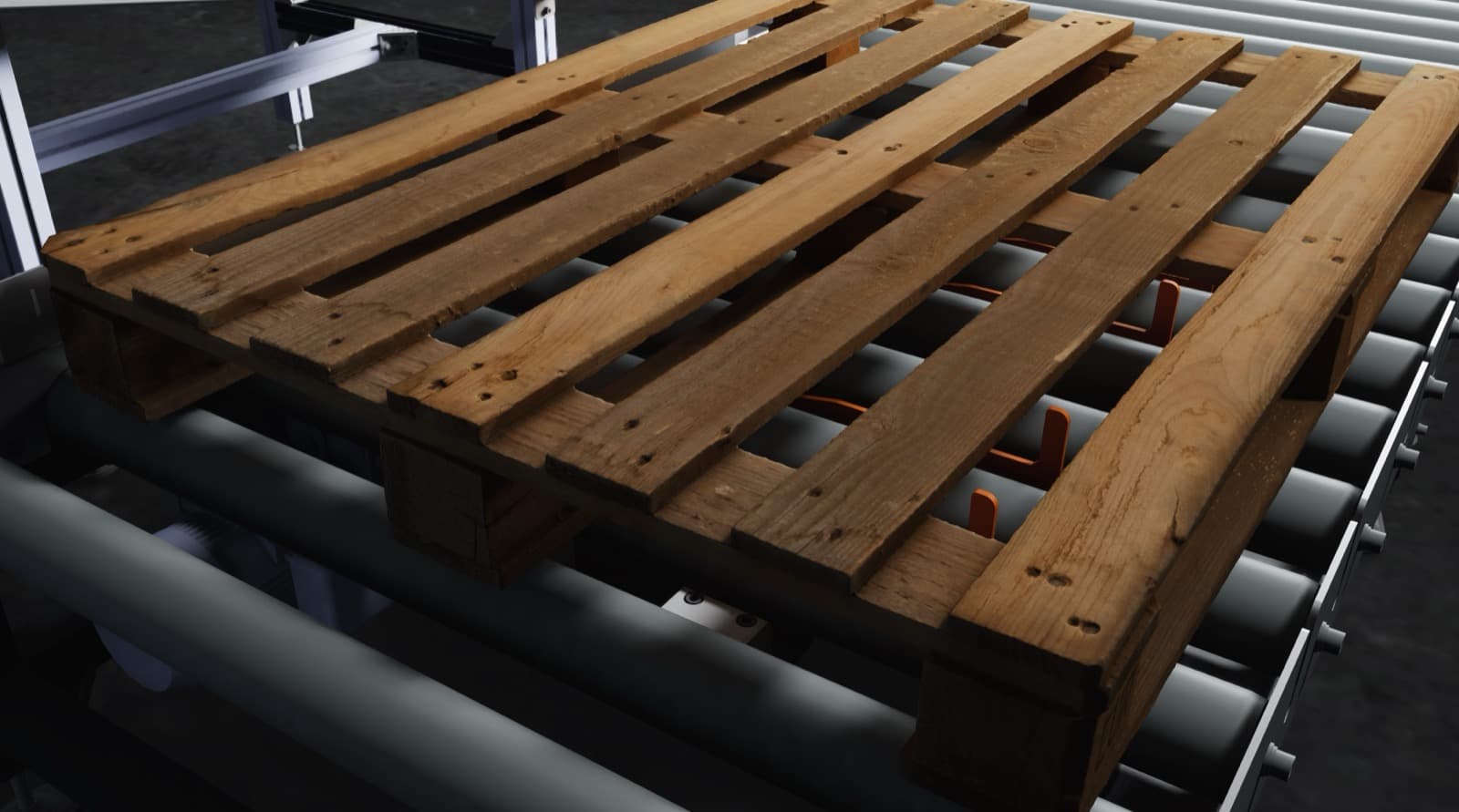

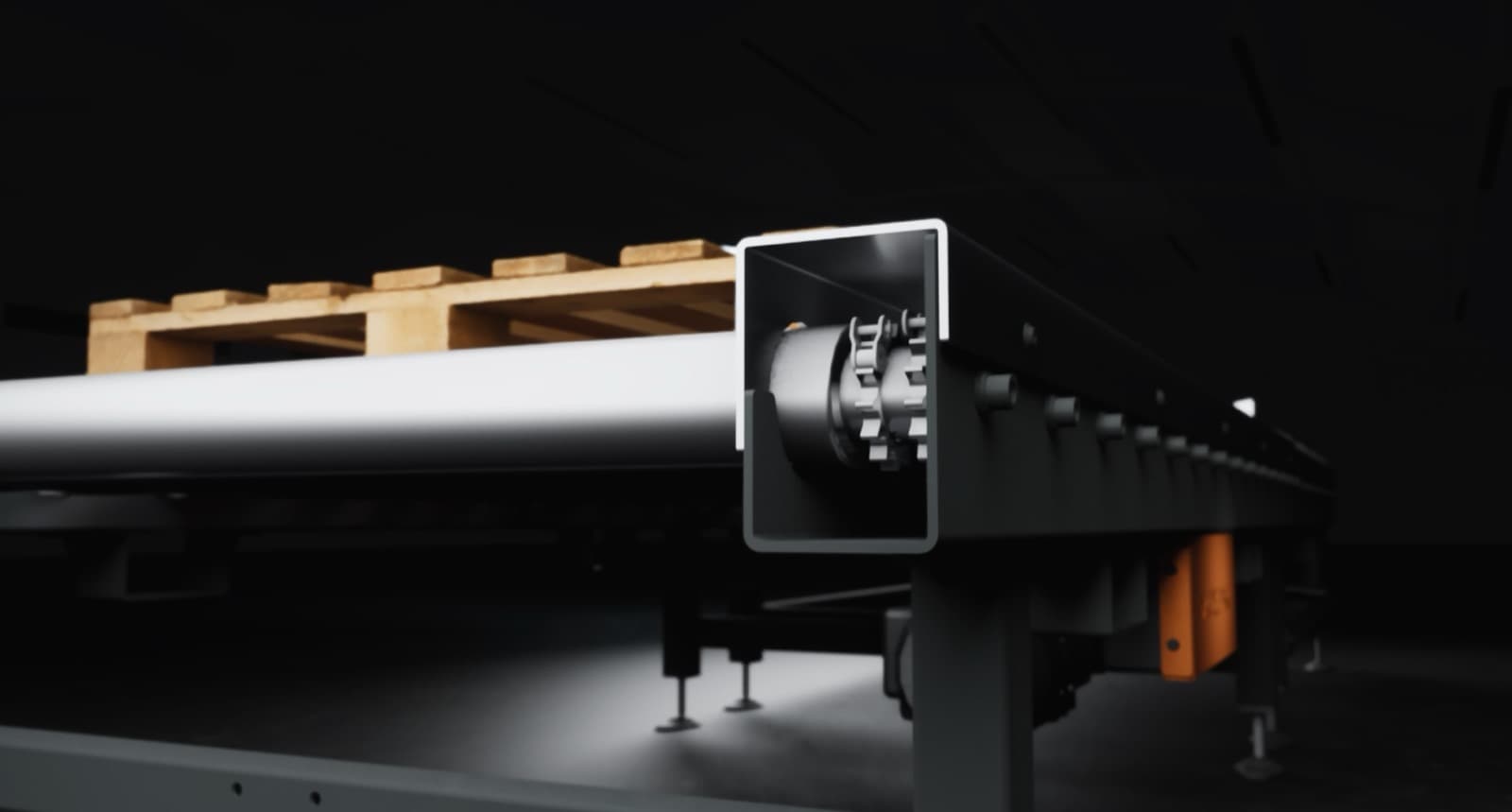

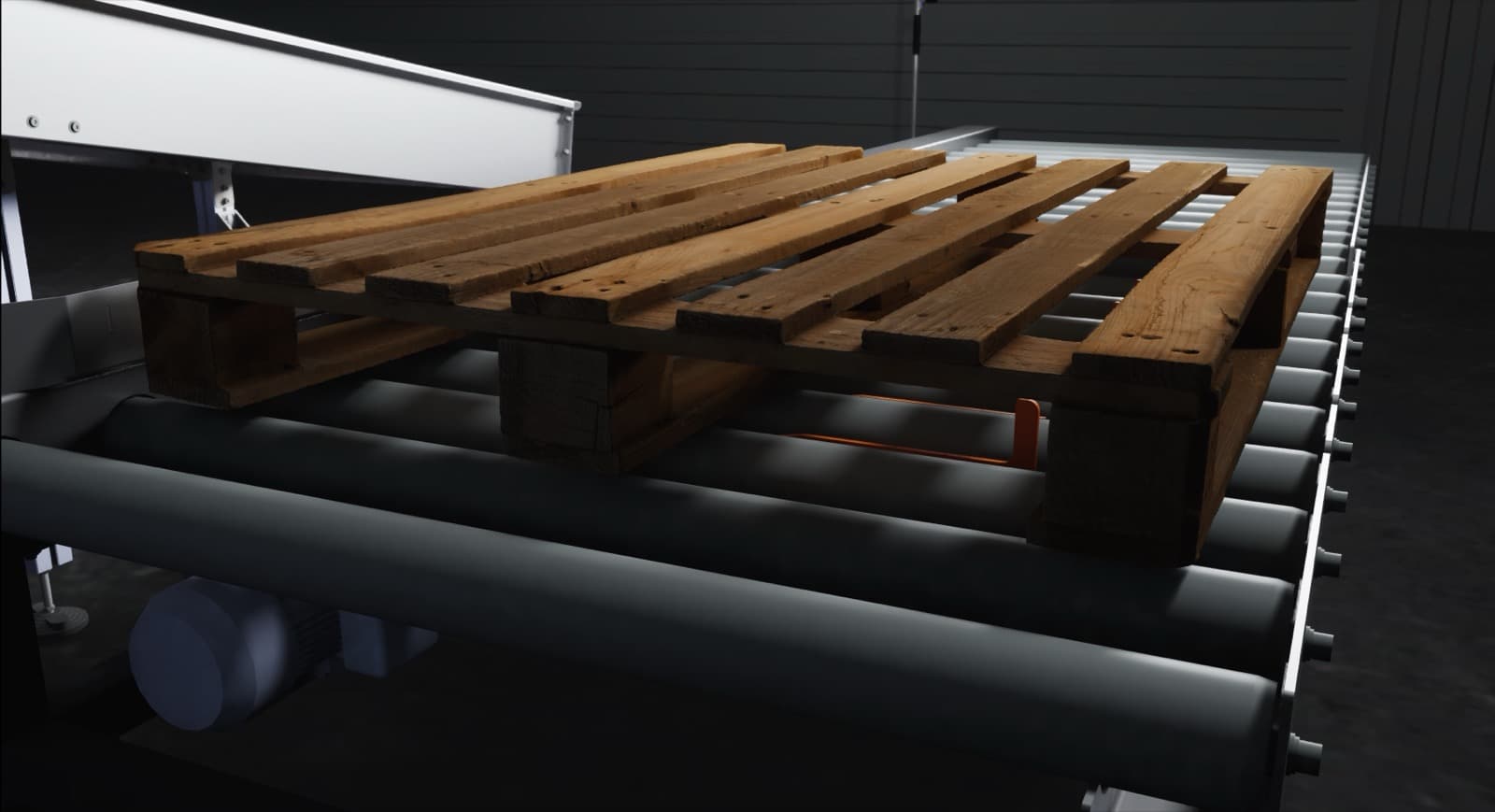

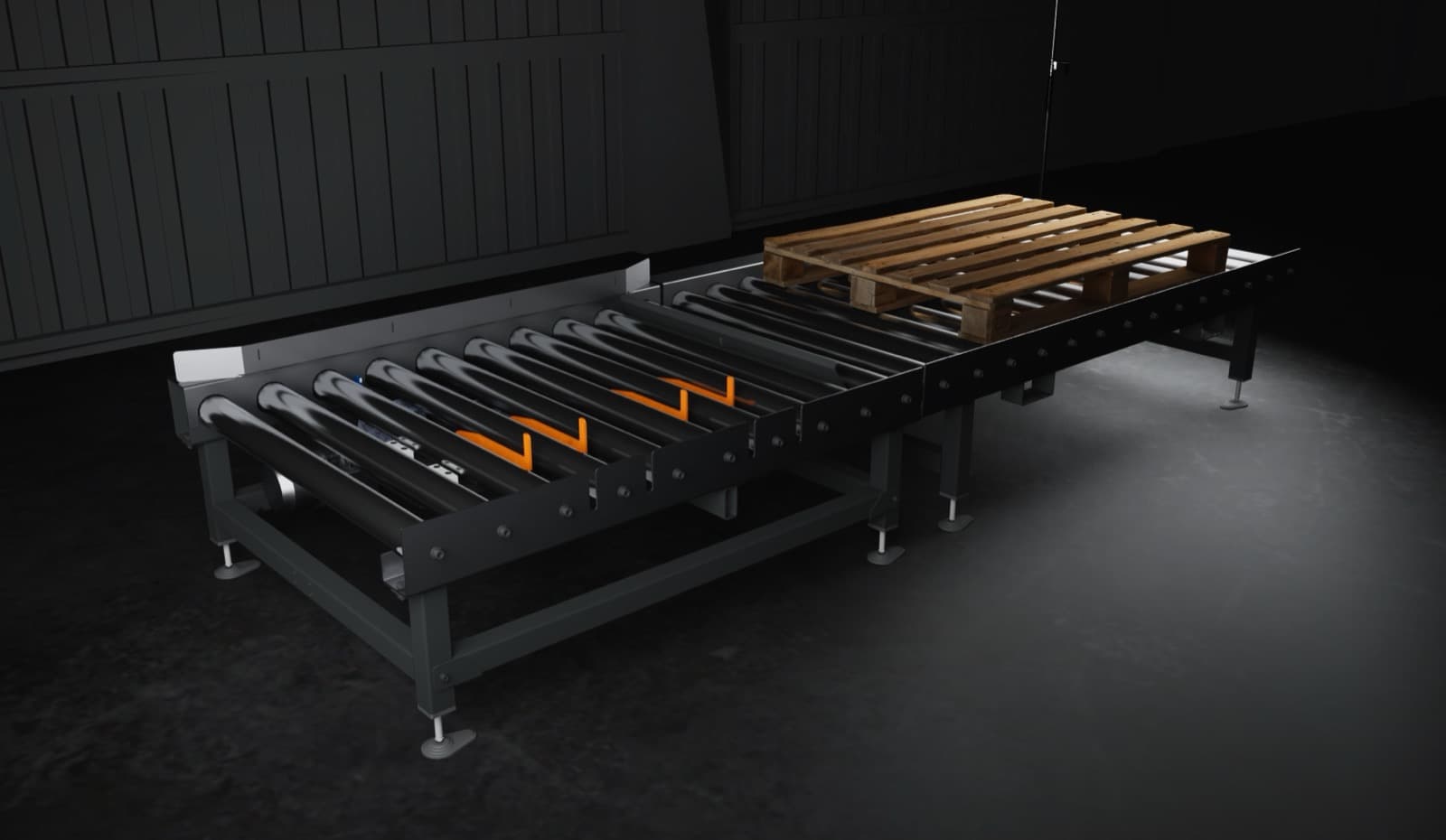

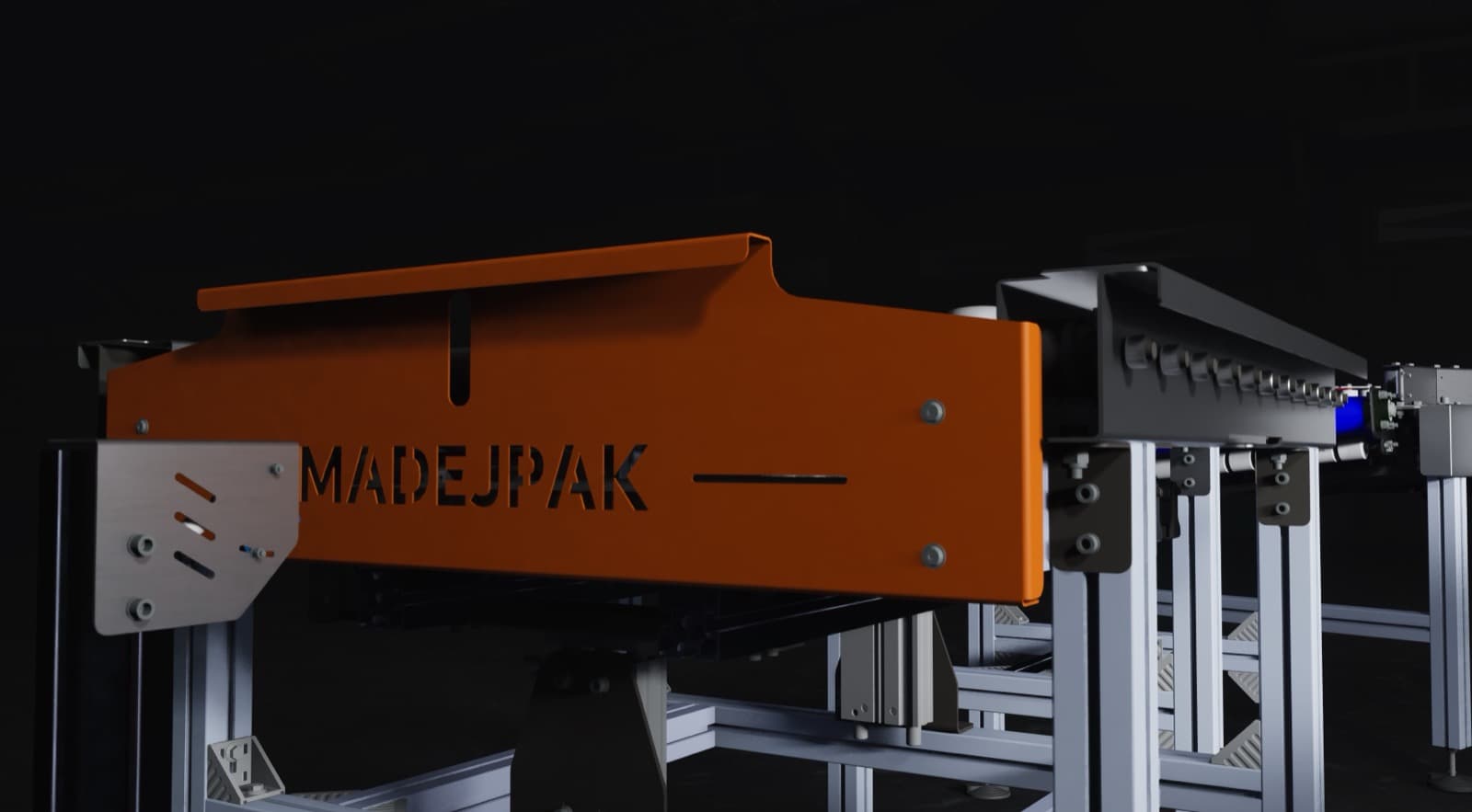

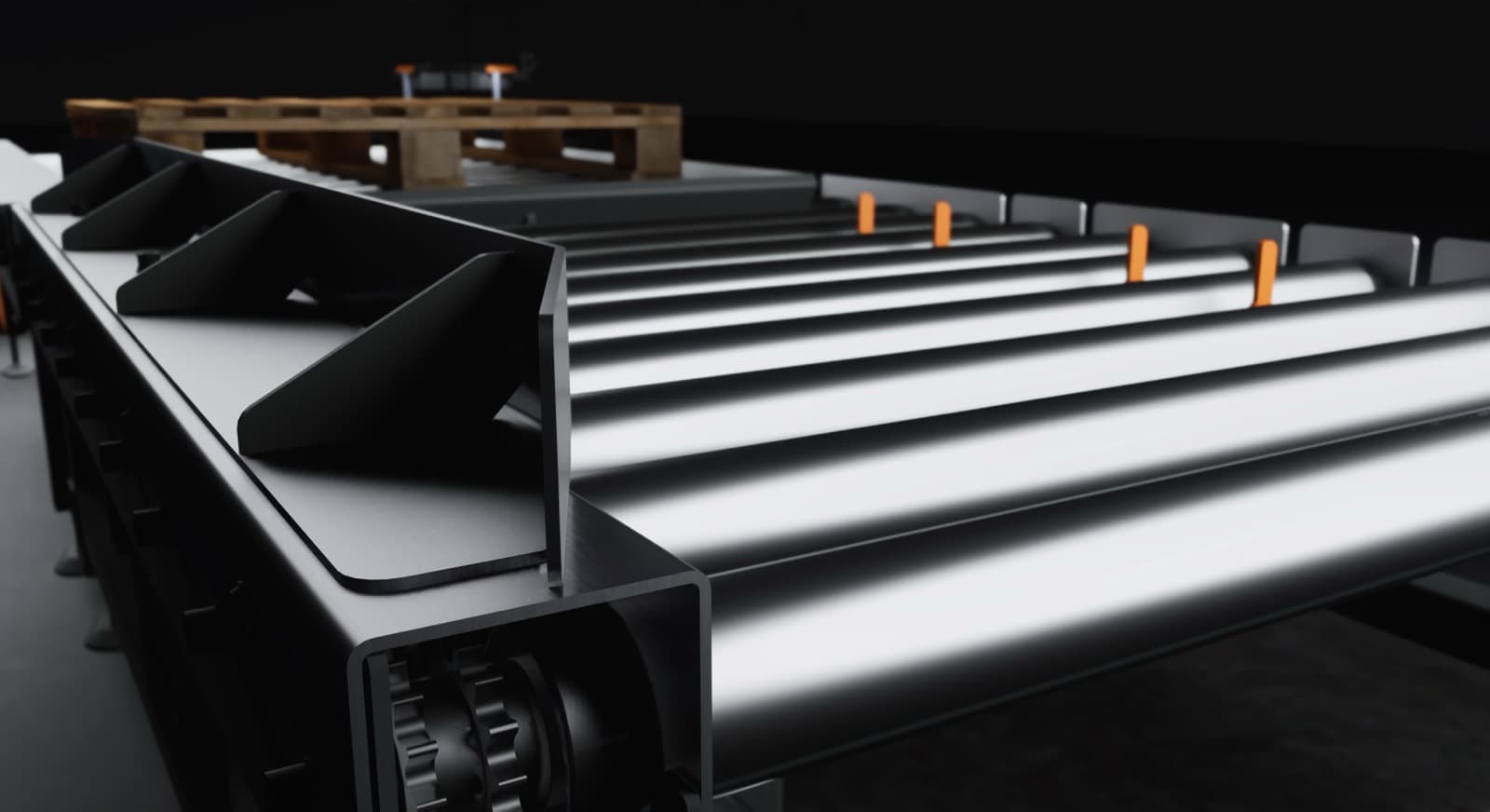

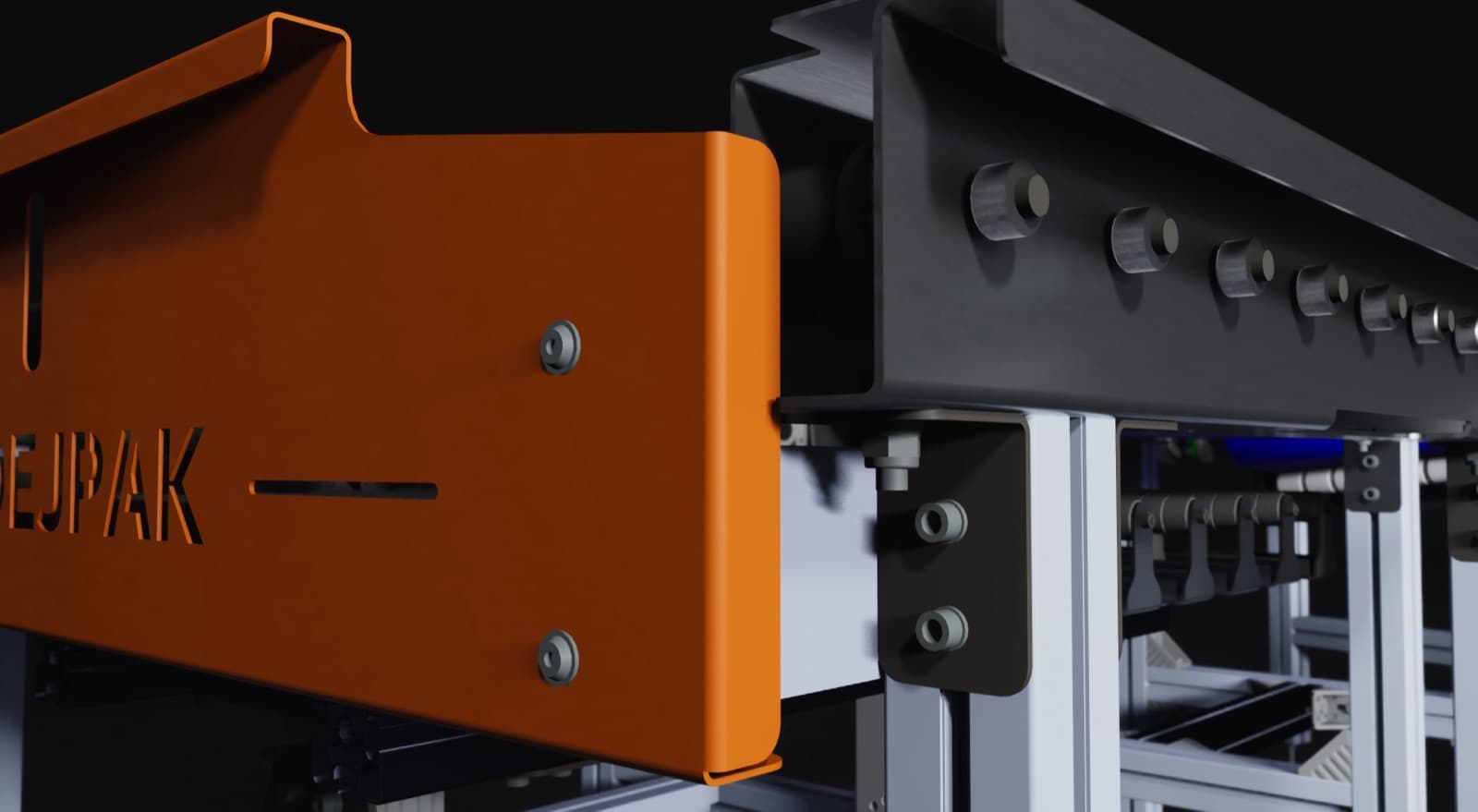

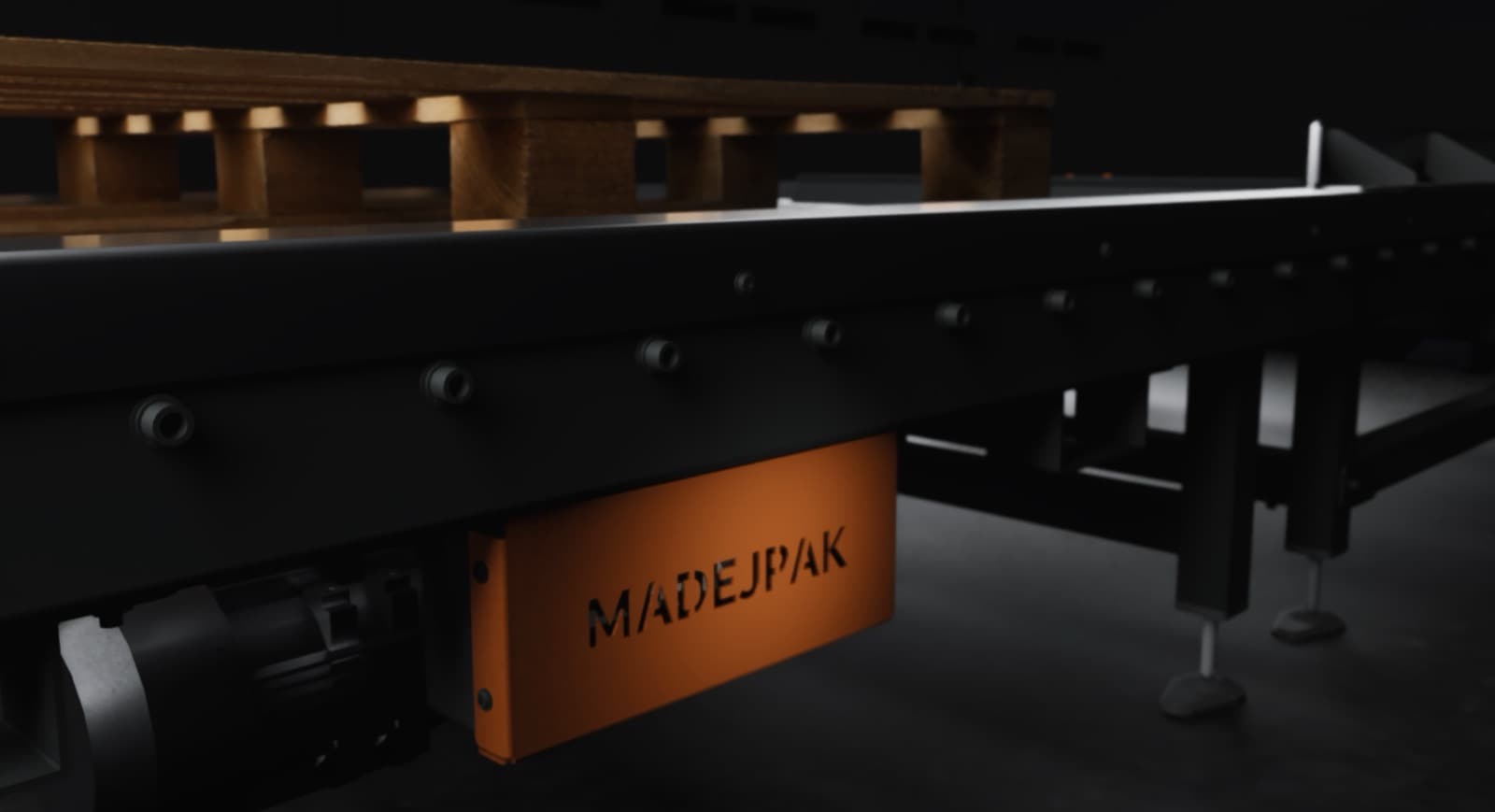

Visualisations
Views of the design from different angles.
Line integration
The machine enters the line as a synchronised element, not a separate purchase. We handle the mechanical and electrical tie-in, commissioning and service — including where the neighbouring units come from other manufacturers.
- Works with pallet wrappers and palletisers
- Stops and position sensors integrated with line control
- Buffer zones sized to forklift pick-up frequency
- Extension of existing pallet handling runs
Selected projects
Installations where this unit works as part of a line.
Robotic palletising of building mortar sacks
A KUKA robot together with a conveyor system moving sacks and pallets
Complete fertiliser packaging and palletising line
Transport, turntable and KUKA robotic palletising through to pallet wrapping
Cat litter palletising and packaging
Pack transport and palletising by two robots in a dust-laden environment
Need this machine built around your process?
Describe the product, throughput and line layout — we will prepare a proposal matched to the real conditions in your plant.
